Analogeingang

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.04, -0.16Very good
Noise level, dB (A): -104.1Excellent
Dynamic range, dB (A): 104.0Excellent
THD, %: 0.0009Excellent
IMD + Noise, %: 0.0061Excellent
Stereo crosstalk, dB: -99.6Excellent
IMD at 10 kHz, %: 0.0022Excellent

General performance: Excellent

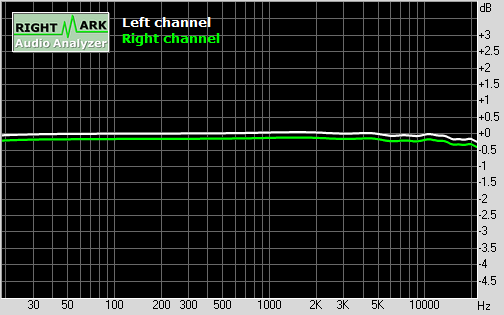

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.19, +0.04
From 40 Hz to 15 kHz, dB-0.16, +0.04

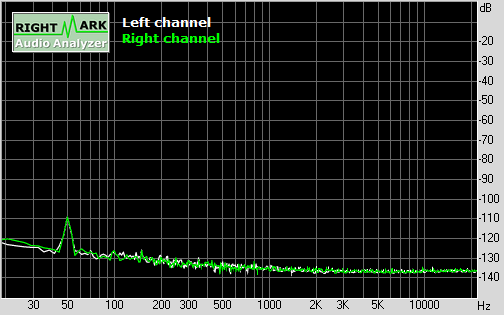

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-102.2-102.0
RMS power (A-weighted), dB:-104.1-104.0
Peak level, dB FS:-79.0-78.7
DC offset, %:-0.00-0.00

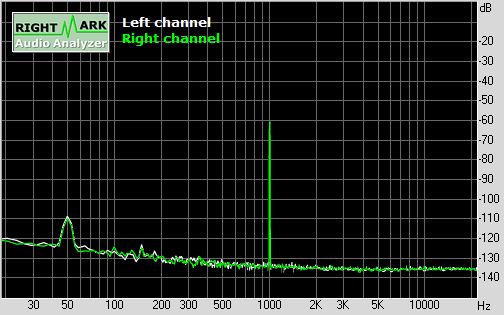

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+102.3+102.4
Dynamic range (A-weighted), dB:+104.1+104.0
DC offset, %:-0.00-0.00

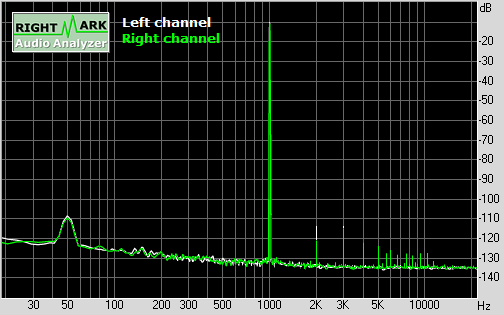

THD + Noise (at -10 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00100.0009
THD + Noise, %:0.00370.0037
THD + Noise (A-weighted), %:0.00310.0032




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00620.0061
IMD + Noise (A-weighted), %:0.00500.0050

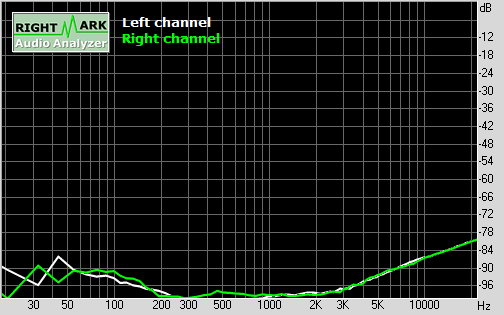

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-93-90
Crosstalk at 1 kHz, dB:-99-98
Crosstalk at 10 kHz, dB:-85-86

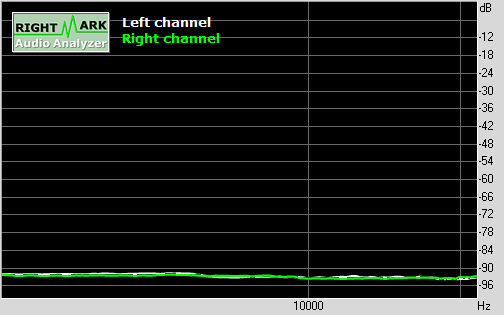

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00250.0024
IMD + Noise at 10 kHz, %:0.00210.0021
IMD + Noise at 15 kHz, %:0.00220.0021

This report was generated by RightMark Audio Analyzer 5.5
